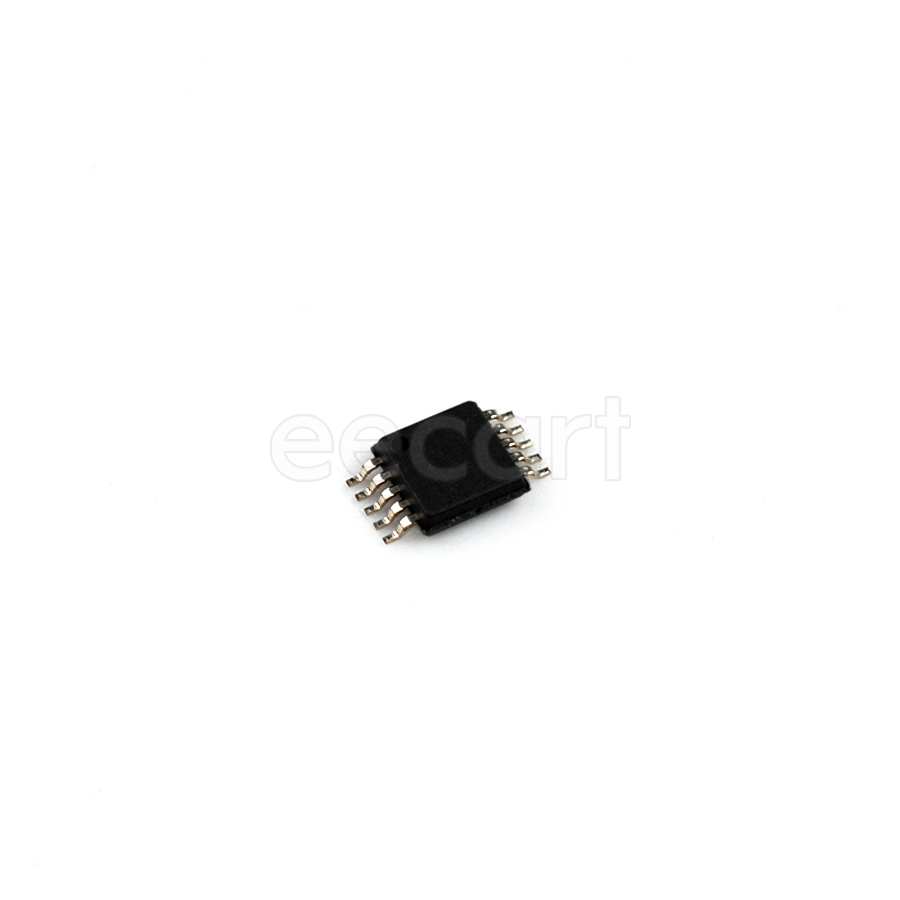

ADC124S021CIMM/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
ADC124S021CIMM/NOPB
Datasheet:
Description:
Analog to Digital Converters (ADCs) VSSOP-10 SMD/SMT number of channels:4 Number of Inputs:4 1.5 B 200 ksps Core Architecture:SAR
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 1.07 mm |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Interface | SPI, Serial |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Power Dissipation | 11 mW |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 2.7 V |
| Power Dissipation | 7.9 mW |
| Number of Channels | 4 |
| Number of Bits | 12 |
| Number of Inputs | 4 |
| Supply Type | Single |
| Sampling Rate | 200 ksps |
| Integral Nonlinearity (INL) | -1.1 LSB |
| Number of Converters | 1 |
| Nominal Supply Current | 1.5 mA |
| Number of Analog Inputs | 4 |
| power consumption | 2.2 mW |
| Resolution | 1.5 B |
| Number of A/D Converters | 1 |
| Signal to Noise Ratio (SNR) | 72 dB |
| Conversion Rate | 200 ksps |
| RoHS | Compliant |
| Packaging | Reel |
| Ratio - S/H:ADC | 1:1 |
| Configuration | MUX-S/H-ADC |
| Input Type | Single Ended |
| Interface Type(Data Interface) | SPI, DSP |
| Reference Type | Supply |
| Core Architecture(core/core processor) | SAR |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Max Digital Supply Voltage | 5.25 V |
| Min Digital Supply Voltage | 2.7 V |
Stock: 2
Distributors
pcbx
pcbxUnit Price$4.88966
Ext.Price$4.88966
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.88966 | $4.88966 |
| 10 | $4.39142 | $43.91420 |
| 25 | $4.07912 | $101.97800 |
| 50 | $3.78903 | $189.45150 |
| 100 | $3.51955 | $351.95500 |
| 300 | $3.44861 | $1034.58300 |
| 500 | $3.37909 | $1689.54500 |
| 1000 | $3.31614 | $3316.14000 |
